Shale Shaker

Shale Shaker

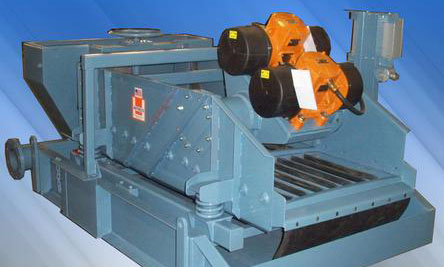

The SMICO Shale Shaker is a high speed, adjustable angle linear drive screener set up for oil field service.  The top mounted inertia coupled dual motor drive is dependable, adjustable and simple to repair with off the shelf motors and drive components. The strong linear action conveys solids with minimum degradation while the uphill action increases fluid throughput.  The deck angle is adjustable while drilling with a manually operated jack or optional electric system.

shale shaker

REQUEST A QUOTE

SCREEN VARIETY

POLY SCREEN

VIBRATING ENGINE

WEDGE SCREEN

THE SMICO SHALE SHAKER CAN BE CUSTOMIZED TO YOUR SPECIFIC APPLICATION

Dewatering and liquid or solid separation applications require durability and efficiency above all else. If you want an adjustable solution that can stand up to the expected amount of wear and tear, the SMICO Shale Shaker is the perfect solution.

Available Sizes

The Shale Shaker is available in the following sizes:

  • Model 366-1D-AHZ - 36" Wide x 6 Ft. Long
  • Model 368-1D-AHZ - 36" Wide x 8 Ft. Long
  • * Model 488-1D-AHZ - 48" Wide x 8 Ft. Long
  • Versatile: Deck Angle is Readily Adjustable While Drilling
  • Efficient:  Convey’s with up to 6 G’s of Force
  • Flexible: Easy Amplitude Adjustment Allows for Quick, Fine Tuning
  • Low Maintenance: Design ensures optimum screen life
  • Rugged: Reinforced Heavy Steel Plate Construction
  • Dependable: Inertia Coupled, Grease Lube, Readily Available Vibrating Motor Drive
  • Quality: Designed for the Rigors of Oil Field Service
  • High Capacity: Can Process up to 15 Barrels of Mud per Minute!
  • Possum Belly with Bypass Gate and Weir
  • Accepts a Variety of Screen Media
  • Explosion Proof Motors
  • Brute Force, Vibratory Motor or Elliptical Motion Drive
  • Wear Resistant Epoxy Coating
  • Spray Bars
  • Drilling Fluids
  • Waste Water
  • Washing Recycled Plastic
  • Washing Aggregate
